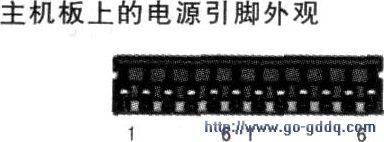

引脚定义
| 引脚 | 定义 | 颜色 | 说明 |
| 1 | FG | Orange (橙) | Power Good,+5VDCwhen all voltanges hasstahi Iized(电源正常信号) |
| 2 | +5 | Red (红) | +5 VDC(or n／c) |
| 3 | +12V | Yellow(黄) | +12 VDC |
| 4 | -12V | Blue(蓝) | -12 VDC |
| 5 | GND | Black(黑) | Ground (地线) |
| 6 | GND | BIack (黑) | Ground(地线) |
引脚定义
| 引脚 | 定义 | 颜色 | 说明 |
| 1 | GND | Black(黑) | Gr ound (地线) |
| 2 | GND | Bl aok(黑) | Gr ound(地线) |
| 3 | +5V | White or Yellow(白或黄) | -5 VDC |
| 4 | +5V | Red(红) | +5 VDC |
| 5 | +5V | Red (红) | +5 VDC |
| 6 | +5V | Red(红) |
